Project Description
WELCOME ODM/ OEM ORDER/ VISIT OUR FACTORY
Feature：

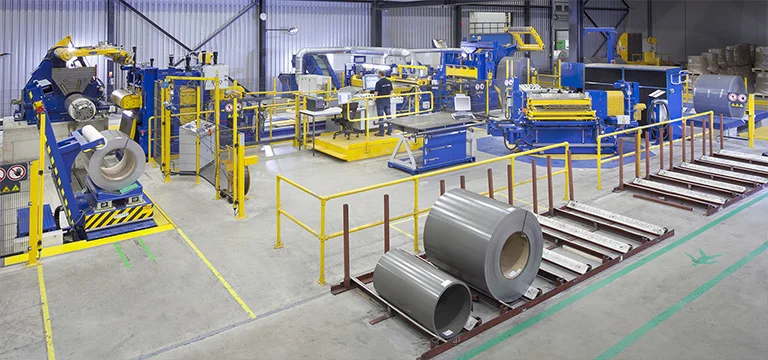

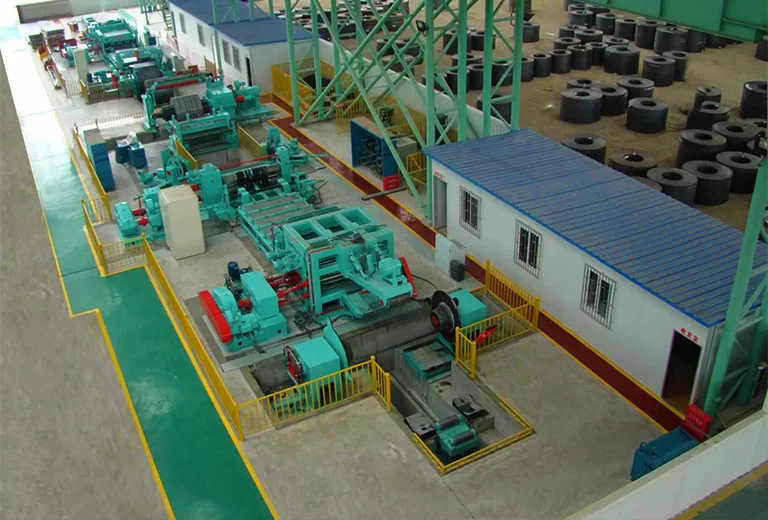

~ The slitting production line is made by the coil car, uncoiling, feeding, blade slitting machine, tension machine, recoil unit, unloading car, control system, etc.
~ The main function is to cut a wide metal coil into a plurality of strips of the requested width along the length direction.
~ To produce billet for Rolling, blanking, cold forming, stamping, etc.
~ By adjusting the distance of upper and lower knife shaft to adapt the different thickness of the plate.
~ Which can be divided into different width strips by the Replacement of different specifications of the blade spacer.
Raw materials and finished product parameters：
|
Name |
Technical Parameters |
|
|
Raw materials |
Raw materials |
Aluminum |
|
Stock Thickness |
0.3～3.0mm |
|
|
Stock Width |
400～1600mm |
|
|
Coil O.D |
≤Φ2000mm |
|
|
Coil I.D. |
Φ480mm～Φ520mm |
|
|
Max. Coil Weight |
20T |
|
|
|
||
|
finished product |
Coil I.D. |
Φ508mm |
|
Coil O.D |
≤1900mm |
|
|
Max. Coil Weight |
Max:20T |
|
|
Number of strip |
Thickness：3.0mm≤10 Strip； |
|
|
Width accuracy |
±0.05mm |
|
|
Burr |
≤0.05mm |
|
|
The smallest strip width |
25mm |
|
|
Scrap width range |
2～5mm |
|
technical parameters
| Model | HL 0.15-1.5 | HL 0.3-2.5 | HL 0.3-3.0 | HL 0.5-4.0 | HL 1.0-6.0 |
| Coil thickness mm | 0.15-1.5 | 0.3-2.5 | 0.3-3.0 | 0.5-4.0 | 1.0-6.0 |
| Coil Width mm | 500-1850 | 500-1850 | 500-1850 | 500-2000 | 500-2000 |
| Speed of production m/min | 120 | 120 | 120 | 120 | 80 |
| Coil Weight t | 10、15、20 | 10、15、20 | 10、15、20 | 20、30 | 20、30 |
| Strip quantity | 35 | 30 | 20 | 15 | 10 |
| Slitting Accuracy mm/m | ＜±0.10 | ＜±0.10 | ＜±0.10 | ＜±0.2 | ＜±0.2 |
| Burr | ＜5% | ＜5% | ＜5% | ＜5% | ＜5% |
| Edge Misalignment of Coil mm | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| Radian Flatness mm | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 |
Process design:
o Slitting the maximum speed of 120M / min.
o Automatic detection of coil parameters. Automatic loading and unloading. Automatic alignment
o Full line PLC control. The colorful touch screen and operation. High degree of automation.
o User-friendly simple operation. Stable performance. Idealize capacity.
*Factory direct
HENLI is the top 10 manufactures in southeast china, more than 100 sets machine and equipment are shipped out from our factory to different countries and areas every month.
*Professional
HENLI have been specializing in press automation since established. We provide full series support from function machine to coil line solution.
*Service support
Free pre sales consulting service including project evaluation and practical suggestion
Free training service from installing to daily maintenance. Full technical support through whole machine life
*Safe Trade
All products showing on site are vaild for online trading, and your order will be protected by Trade Assurance.
