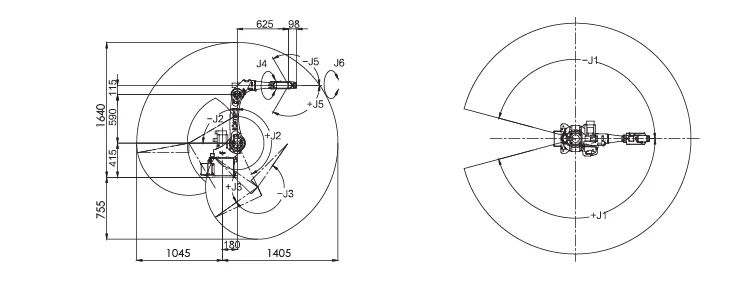

6 Axis Welding Robot Manipulator

• Standard Accessories

1.        Welding system: It could adapt most of welding brand like Apollo，Binzel，Arctec, Panasonic  … ,Base on request, we offer best solution by using MIG or TIG welding machine with automatic wire feeding system to achieve stable performance.

2.        Automatic alarm system: if any problem on the wire feeding or gas supply and other problems, the welding robot will alarm and stop till it get done.

3.        Welding gun cleaning : For MIG welding we equip with a gun cleaning device for prolong use; For TIG welding we quip water cooling device.

4.        Working station positioner: Usually we equip 1 robot with 2 stations ,Two stations work alternately, This is what we call 8 axis, Single table could achieve 360° rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use, so as to increase efficiency.

5.        Work piece clamping system: This is customization station base on the work piece. Balanced and stable clamping force.

6.        Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process. （optional）

7.        Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.

• System Software Introduction

  A.   Basic functions

• Safety protection
• User Management
• Engineering, Program and Variable Management
• Tool and coordinate system teaching and management
• Jog/auto run and location view
• Speed setting and viewing
• Manual/Automatic/External Automatic Switching

 B.   Advanced Features

• PLC function: Provides the interface between robot and external PLC, PLC external control, use of external tracking coordinate system, etc.
• Arc welding function: support one-dimensional / two-dimensional / three-dimensional / associated seek function, swing arc function, arc tracking, etc.
• Palletizing Function: Supports up to ten simultaneous use of palletizing variables for different stacking effects
• Additional axes: Up to six additional axes can be configured The usual additional axes include positioners and guides.
• Bend function: support for multiple bending machines

• Applicaton Cases
